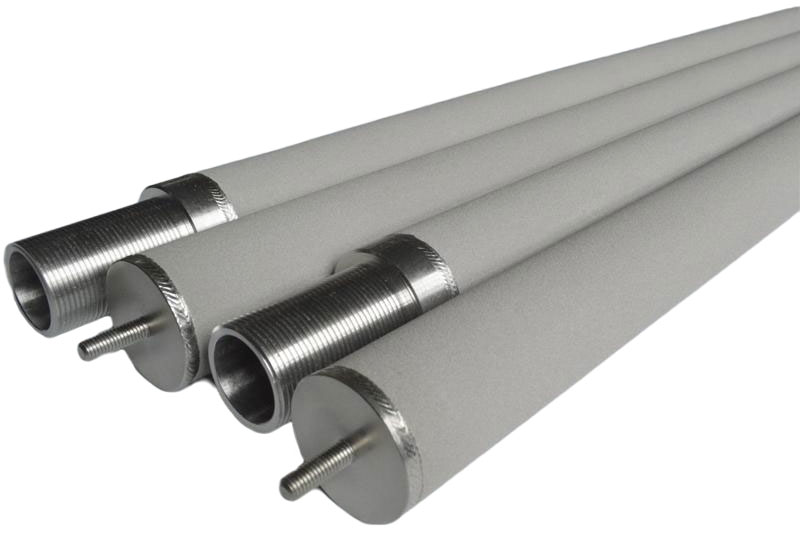

Sintered Porous Filter
Sintered porous filter use metal powder as raw material without adding binder. First, the metal powder is compacted and molded at room temperature with a liquid as the pressure medium, and then vacuum sintered at high temperatures. When heated below the melting point of the main component, bonding and other physical and chemical interactions occur between the particles, resulting in a sintered material with the desired strength and properties. By equipping different connectors, sintered porous filters with stable shape, good permeability and good separation effect are obtained.
The pore size, distribution, strength and permeability of sintered porous filters depend on the powder fineness, compaction and sintering process. Sintered porous filter achieve micron fine filtration to remove solid particle impurities from liquids and gases.
The most commonly used sintered metal materials are stainless steel and brass. In addition, titanium, nickel, monel alloys and other materials are available upon request.
Material of sintered porous filter
Stainless Steel: Mainly made of 304 and 316L stainless steel powder, it features excellent resistant to corrosion, oxidization, wear and good mechanical strength, and has a filter rating of 0.1–65 μm.
Titanium: Constructed of 99.7% titanium powder, it features low density, high strength, good corrosion resistance and biological compatibility, and has a filter rating of 0.2–50 μm.
Nickel: Made of Inconel 600 and Monel, it features high strength, good oxidization resistance and up to 1000 °C, and has a filter rating of 0.5–50 μm.

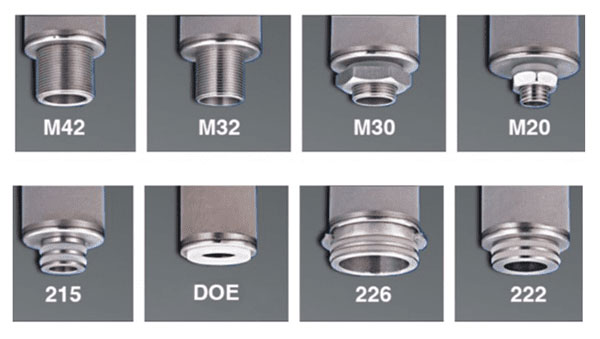

Connector type of sintered porous filter
Sintered porous filter can work with a variety of connectors and can be customized upon request.
- Standard connector (215, 222, 226)
- Thread connection (M20, M30, M32, M42, etc.)
- Flat/DOE
- Special customized connector
Specification of sintered porous filter
Material: stainless steel, brass, titanium, nickel alloy, etc.
Max. operating temperature: 600 °C; nickel alloy: 1000 °C.
Filter rating: 0.2–80 μm
Porosity: 30%–45%
Max. compressive strength: 3.0 MPa
Specification of Sintered Stainless Steel Porous Filters
| Filter Rating (μm) | Maximum Aperture (μm) | Coefficient of Permeability (10-12m2) | Permeability (m3/h.m2.kpa) | Thickness (mm) | Compressive Strength (MPa/cm2) | Bubble Point Pressure (kPa) | Maximum Operating Temperature (°C) |
|---|---|---|---|---|---|---|---|
| 0.2 | 2.5 | – | 1 | 3 | 3.0 | – | 600 |
| 0.5 | 4 | – | 3 | 3 | 3.0 | – | 600 |
| 1 | 6 | – | 5 | 3 | 3.0 | – | 600 |
| 2.5 | 10 | 0.09 | 10 | 3 | 3.0 | 9.16 | 600 |
| 5 | 15 | 0.23 | 40 | 3 | 3.0 | 6.1 | 600 |
| 8 | 20 | 0.91 | 80 | 3 | 3.0 | 4.6 | 600 |
| 10 | 30 | 1.81 | 160 | 3 | 3.0 | 2.6 | 600 |
| 28 | 60 | 3.82 | 350 | 3 | 3.0 | 1.8 | 600 |
| 35 | 80 | 7.29 | 500 | 3 | 3.0 | 1.4 | 600 |
| 40 | 100 | 9.43 | 700 | 3 | 3.0 | 1.1 | 600 |
| 65 | 160 | 15.1 | 1000 | 3 | 3.0 | 0.66 | 600 |
Specification of Sintered Titanium Porous Filters
| Filter Rating (μm) | Maximum Aperture (μm) | Coefficient of Permeability (10-12m2) | Permeability (m3/h.m2.kpa) | Thickness (mm) | Compressive Strength (MPa/cm2) | Maximum Operating Temperature (°C) |
|---|---|---|---|---|---|---|
| 0.2 | 2.5 | – | 1.5 | 3 | 3.0 | 300 |
| 0.5 | 4 | – | 3 | 3 | 3.0 | 300 |
| 1 | 6 | – | 5 | 3 | 3.0 | 300 |
| 2 | 10 | – | 15 | 3 | 3.0 | 300 |
| 5 | 15 | 0.04 | 40 | 3 | 3.0 | 300 |
| 10 | 30 | 0.15 | 120 | 3 | 3.0 | 300 |
| 20 | 60 | 1.01 | 250 | 3 | 3.0 | 300 |
| 30 | 100 | 2.01 | 500 | 3 | 3.0 | 300 |
| 50 | 160 | 3.02 | 800 | 3 | 3.0 | 300 |
Specification of Sintered Nickel Porous Filters
| Coefficient of Permeability (10-12m2) | Permeability (m3/h.m2.kpa) | Thickness (mm) | Compressive Strength (MPa/cm2) | Maximum Operating Temperature (°C) |
|---|---|---|---|---|
| 0.18 | 18 | 3 | 2.5 | 1000 |
| 0.4 | 40 | 3 | 2.5 | 1000 |
| 0.8 | 80 | 3 | 2.5 | 1000 |
| 1.61 | 160 | 3 | 2.5 | 1000 |
| 3.22 | 320 | 3 | 3 | 1000 |
| 6.03 | 600 | 3 | 3 | 1000 |
| 9.05 | 900 | 3 | 3 | 1000 |
Characteristics of sintered porous filter
- Uniform pore space, stable internal structure.
- High filtration precision, good purification effect.
- No particle shedding, no secondary pollution to the original liquid.
- Good air permeability, easy reflux.
- High mechanical strength, good plasticity, easy processing.
- Excellent resistance to high temperature, high pressure and corrosive properties.
FAQ's
There are many ways to keep you going. Maintenance is crucial for industrial water filters to achieve sufficient filtration and long-term use. To avoid being shut down, you must clean and replace your filter element according to the manufacturer's instructions.
- Plan to regularly inspect the internal screen components.
- Arrange regular inspections of electronic control systems.
- Arrange to regularly add lubricating grease to bolts and sealing components.
- Regularly inspect the filter housing for paint peeling off..
Many industrial water filters need to be replaced within 18 months. Usually depends on the degree of pollution and frequency of use. Therefore, these factors will determine the service life of commercial water filters.
