Sintered Metal Mesh Filter Cartridges

Product

Sintered metal mesh filter cartridges are cylindrical filter elements made of sintered wire mesh. Most of these filter elements use the standard 5-layer sintered wire mesh type A as the filter medium. Type B full square weave sintered wire mesh is also used for filter elements that require high permeability and high flow.

Advantages of sintered metal mesh filter cartridges compared to wire mesh filters

Compared with non-metallic and ordinary wire mesh filter elements, sintered metal mesh filter cartridges have advantages in the following aspects:

Fixed and stable pore size under high temperature and pressure
Suitable for temperature applications above 300 degrees Celsius
Washable and reusable
Fully welded structure, no risk of spot welding or adhesive failure
Self-supporting, easy to form cartridges

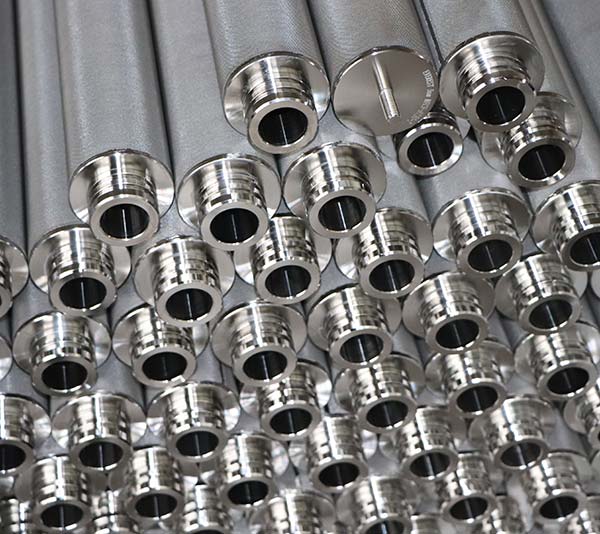

welding detail of sintered wire mesh filter cartridge

welding detail of sintered wire mesh filter cartridge

welding detail of sintered wire mesh filter cartridge double O-ring

welding detail of sintered wire mesh filter cartridge double O-ring

Since the mechanism of sintered wire mesh is to block and suppress impurities in the working fluid, there is a possibility that impurities will accumulate and form a filter cake. The filter cake can improve the filtration accuracy to a certain extent before cleaning or removing the filter cake by backwashing or offline cleaning.

Sintered metal mesh filter cartridges are suitable for micron-level filtration and separation applications. Such as particle candle filters for chemical, pharmaceutical, oil and gas, petrochemical; food and beverage, fuel, hydraulic filters.

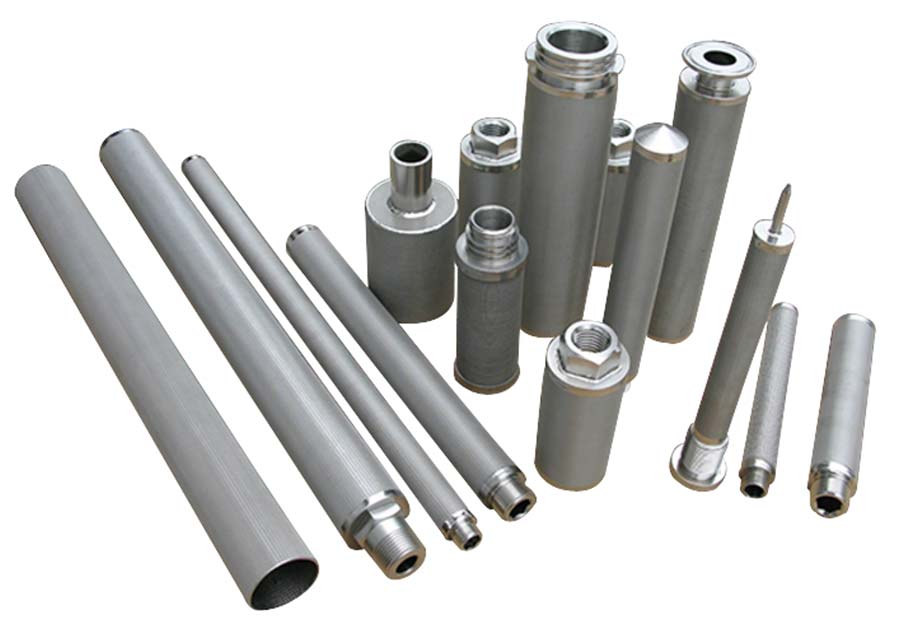

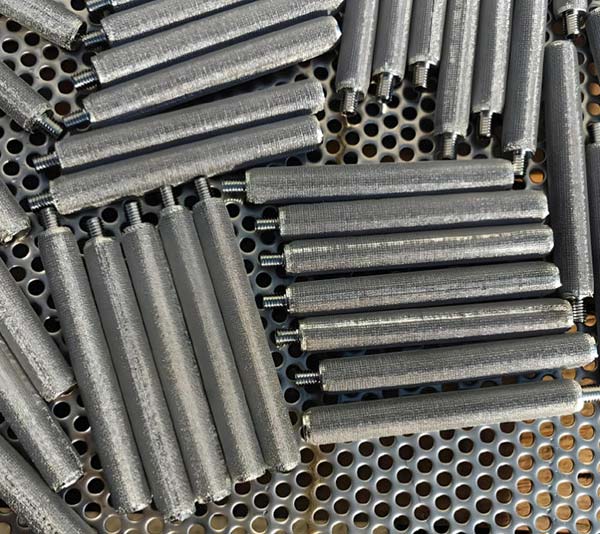

sintered metal mesh filter cartridges

sintered metal mesh filter cartridges

Micron rating, end fittings and sealing materials for sintered metal mesh filter cartridges

Our micron rating options: 1 2 5 10 15 20 25 30 40 50 100 150 200μm.

Filter element end fittings: DOE, 226 double o-ring, 222 double o-ring, NPT BSPT thread, other standard threads, flange, tri-clamp quick-install flange/sanitary ferrule adapter, other customized solutions.

Filter element sealing materials: Nitrile rubber (NBR), EPDM, silicone, polytetrafluoroethylene (PTFE), fluororubber (FKM), other fluoride sealing materials.

Maximum operating temperature recommendation:

Threaded connection – same as metal materials, up to 800 degrees Celsius
PTFE – 260 degrees Celsius
Silicone – 230 degrees Celsius
Fluororubber (FKM) – 200 degrees Celsius
EPDM – 150 degrees Celsius
NBR (Nitrile) – 120 degrees Celsius

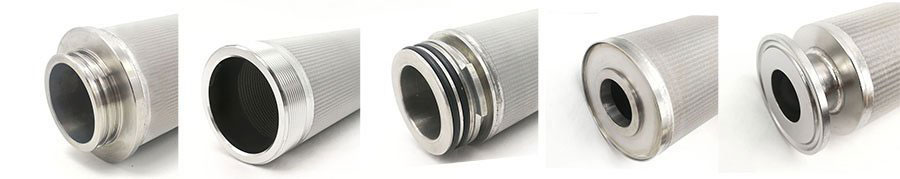

end fitting collection of sintered metal mesh filter cartridges

end fitting collection of sintered metal mesh filter cartridges

Material options for sintered metal mesh filter cartridges

316 (1.4401), 316L (1.4404), 304, 304L stainless steel are standard materials for sintered metal mesh filter elements.

Other special materials are also available on request, such as 310S, 904L, Hastelloy C276, Hastelloy C22, Monel 400, Inconel 625, etc.

Hardware/end fittings materials can be different from sintered metal mesh.

Query

FAQ's

Yes. By working closely with clients, design filter levels, operating parameters, dimensions, and styles.

Our experienced team of professional engineers is dedicated to developing the best filtration solutions, from initial conceptual design to manufacturing and validation, and then to service support.

Each of our filters or filtration systems fully meets the specified requirements, all of which are recorded as recognition of our work quality.

Yes, we have ISO certificates and patent certificates.

With the help of pressurized water or air backwashing, you can clean your industrial water filter. Therefore, if the water is highly polluted, such as rivers or groundwater, it takes 2-3 days to clean the filter. But if the water is clean, it can be cleaned in 2-3 weeks. In some filter systems, there is an automatic backwash system that automatically cleans the filter when it becomes clogged.

There are many ways to keep you going. Maintenance is crucial for industrial water filters to achieve sufficient filtration and long-term use. To avoid being shut down, you must clean and replace your filter element according to the manufacturer's instructions.

Plan to regularly inspect the internal screen components.
Arrange regular inspections of electronic control systems.
Arrange to regularly add lubricating grease to bolts and sealing components.
Regularly inspect the filter housing for paint peeling off..

Many industrial water filters need to be replaced within 18 months. Usually depends on the degree of pollution and frequency of use. Therefore, these factors will determine the service life of commercial water filters.
